- Housing made of ABS plastic, UV-stable;
colour: 9/118645, same as RAL 9016 (Traffic white)
- Dimensions: 172x86x33Êmm (LxWxH)
- External power supply:
regulated mains adapter 9 – 24 VDC
- Output: max. 3 VA
- Radio module transmission power:
10 dBm (6.3 mW) to the antenna socket
- Radio frequency: 868.xx – 870ÊMHz
- Power-over-Ethernet: all SI.GN.ERs are PoE-capable (802.3af)

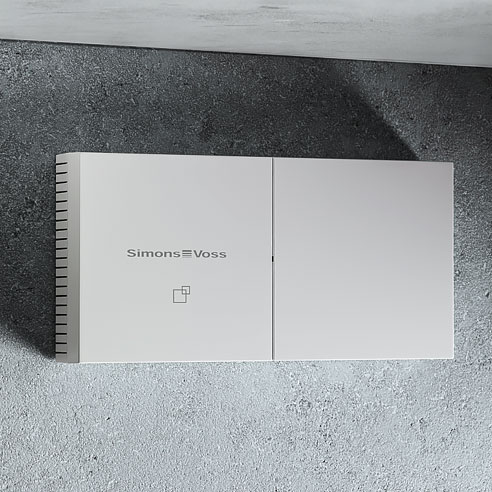

Gateway Node Smart Intego
Seamlessly integrated. No ifs, no buts.
The GatewayNode ensures contiuned connectivity and acts as an intermediary device, facilitating two way communication between the SmartIntego locking products and the 3rd party access control system..
Documents in other languages
A series of unique characteristics transform the radio-based GatewayNode with an RS485 or TCP/IP interface (PoE 802.3af) into an exceptionally powerful access manager. Each GatewayNode is capable of communicating with up to 16 locking devices via an 868 MHz wireless connection.
Thanks to its innovative internal components, it is capable of transmitting so-called white lists with up to 250 card holders from the access control system and stored locally within the locking device itself. Access through the doors is therefore assured in the event of an access control system failure.
