SmartRelay AX Classic Smart Intego

The SmartIntego family is growing –
the new smart relay for access control.

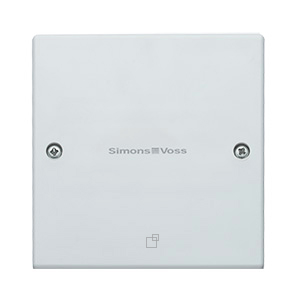

The SmartRelay AX Classic is a new member in the SmartIntego family. It extends the product portfolio with a device, that allows to control not only gates, doors and turnstiles, but also connects to machines, devices, lighting and much more. Based on the new AX platform, the SmartRelay AX Classic accepts passive RFID media, like cards, transponders, key-fobs. And it is prepared to be used with smartphones having a Bluetooth® Low Energy interface and an appropriate app in future.

This new solution consists of two components, both, a secure controller unit and a reader unit. The reader is already optimized for rough environments. Versions with weather and vandalism are offered for even more harsh surroundings.

The device can be ordered for three SmartIntego modes, WO Wireless Online for integration into WaveNet networks, plus two offline variants, VCN Virtual Card Network and also new, OSS Standard Offline.

Versions

Dedicated SmartRelay AX Classic controller and reader versions for the three SmartIntego operating modes

:: VCN Virtual Card Network: A cost-effective and secure card-based virtual network

:: WO Wireless Online: For wirelessly linked online networks. Reader unit with preinstalled LNI WaveNet LockNode

:: OSS Open Standard Offline: Card-based offline access environment, based on OSS-SO compliant cards on Mifare® DESFire® technology

Most users only see SmartRelay AX Classic readers, when presenting their card asking for access. Variants include

:: Housing colour white or dark grey

:: WP as a weather protected version

:: COVER against vandalism, an additional cover protects the reader unit, of course in the same housing colour as the reader

WIRELESS ONLINE NETWORK (868 MHz)
Secure setup of two units – reader in outside area, controller in secure inside area
Reader support 5 different card set-ups
Door access electric is connected to the SmartRelay AX Classic controller unit
Integrator’s access control system verifies user card presented at the reader and sends open command to the SmartRelay AX Classic – using WaveNet wireless data transfer
Input line for a Push-to-Exit button
Supported by the SmartIntego tool-chain

VIRTUAL CARD NETWORK / “VIRTUAL NETWORKING”
Access authorisations based on groups and exception functions
Secure setup of two units – reader in outside area, controller in secure inside area
Reader support of 5 different card set-ups, having VCN data card structures
Blacklist transfer and physical access lists
Initial programming possible using access control manufacturer’s online reader
Time profile on the card
Data transmission secure during writing and read procedure
Door access electric is connected to the SmartRelay AX Classic controller unit
Optional input line for a Push-to-Exit button
Supported by the SmartIntego tool-chain

OSS STANDARD OFFLINE
Works with OSS-SO standard card media on MIFARE® DESFire® cards
Secure setup of two units – reader in outside area, controller in secure inside area
Door access electric is connected to the SmartRelay AX Classic controller unit
Optional input line for a Push-to-Exit button
Supported by the SmartIntego tool-chain

.
